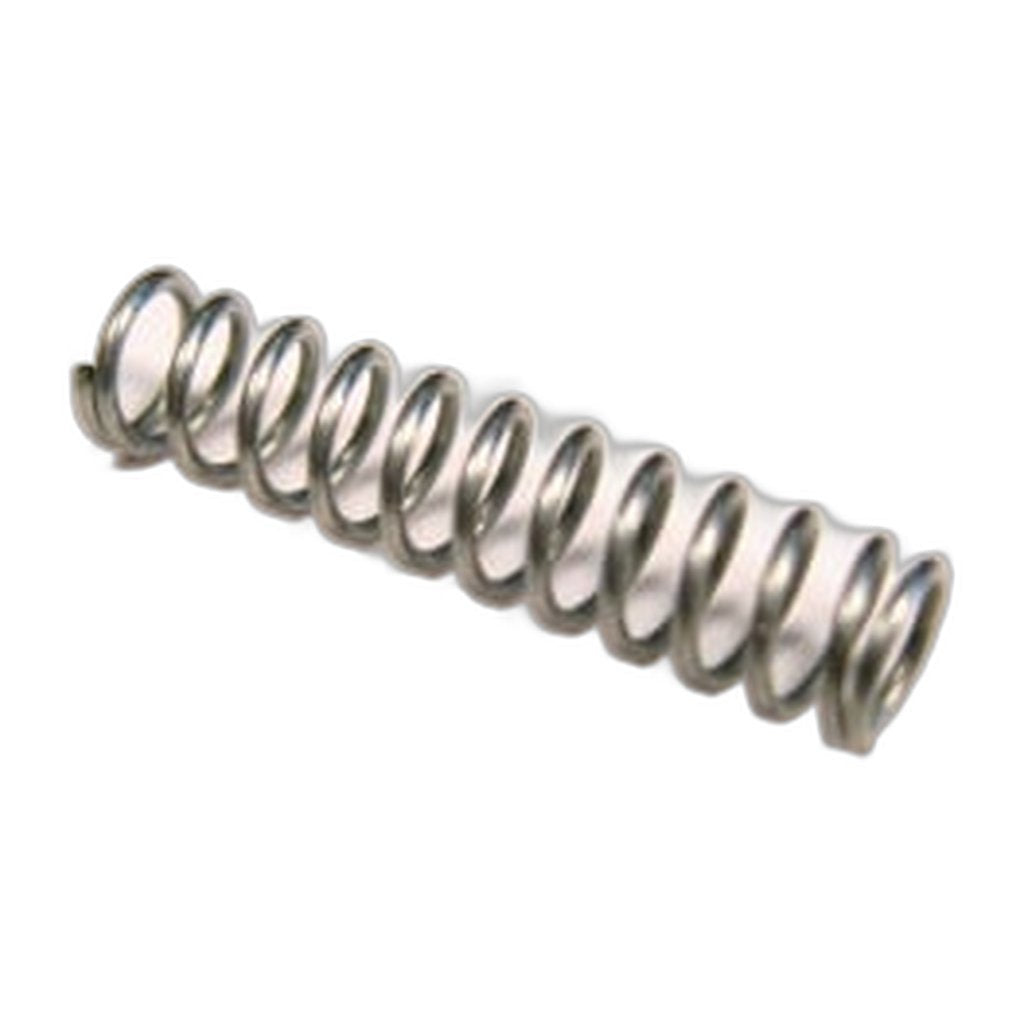

SEBO Brush Roller Release Spring for Automatic X and Essential G Series

A brush roller release with no tension behind it will not return to the locked position, and from that point the roller is held by friction alone. SEBO 5103 supplies the tension. It is the small spring sitting behind the release mechanism in the nozzle, and one number covers a wide span of AUTOMATIC X and ESSENTIAL G uprights.

SEBO shows it at position 115 on the AUTOMATIC X4/X5 diagram and position 116 on the ESSENTIAL G4/G5 diagram. The symptom of a tired or missing spring is a release that stays where you push it instead of springing back, and a roller that can be worked out of its housing without touching the lock at all. Left that way, the roller shifts under load, the belt runs off line, and the end caps take wear they were never meant to see. The spring is also the classic strip-down casualty: it is small enough to vanish into a carpet the moment it is dropped, which is reason enough to have a spare in the box before starting.

• SEBO part number 5103, spring for the brush roller release
• Fits the SEBO AUTOMATIC X1, X2, X4, X4 Boost and X5
• Fits the SEBO ESSENTIAL G1, G2, G4 and G5
• Diagram position 115 on the AUTOMATIC X4/X5 drawing and position 116 on the ESSENTIAL G4/G5 drawing
• The release lock it acts on is a separate number that changes with the machine and its finish: 5102GS in gray black, plus 5713DB, 5713GS, 5713SW and 5713WE across the dark blue, gray black, black and white variants
• Also useful at the same service: 8366WS brush roller cleaning tool, 5110 drive belt
• Genuine SEBO hardware from an authorized dealer; ships in 2-5 business days

Fit it with the roller out and test the release a few times before closing up. Common searches for this item are SEBO brush roller release spring, Essential G roller lock spring, Automatic X4 brush release spring and genuine SEBO 5103.
