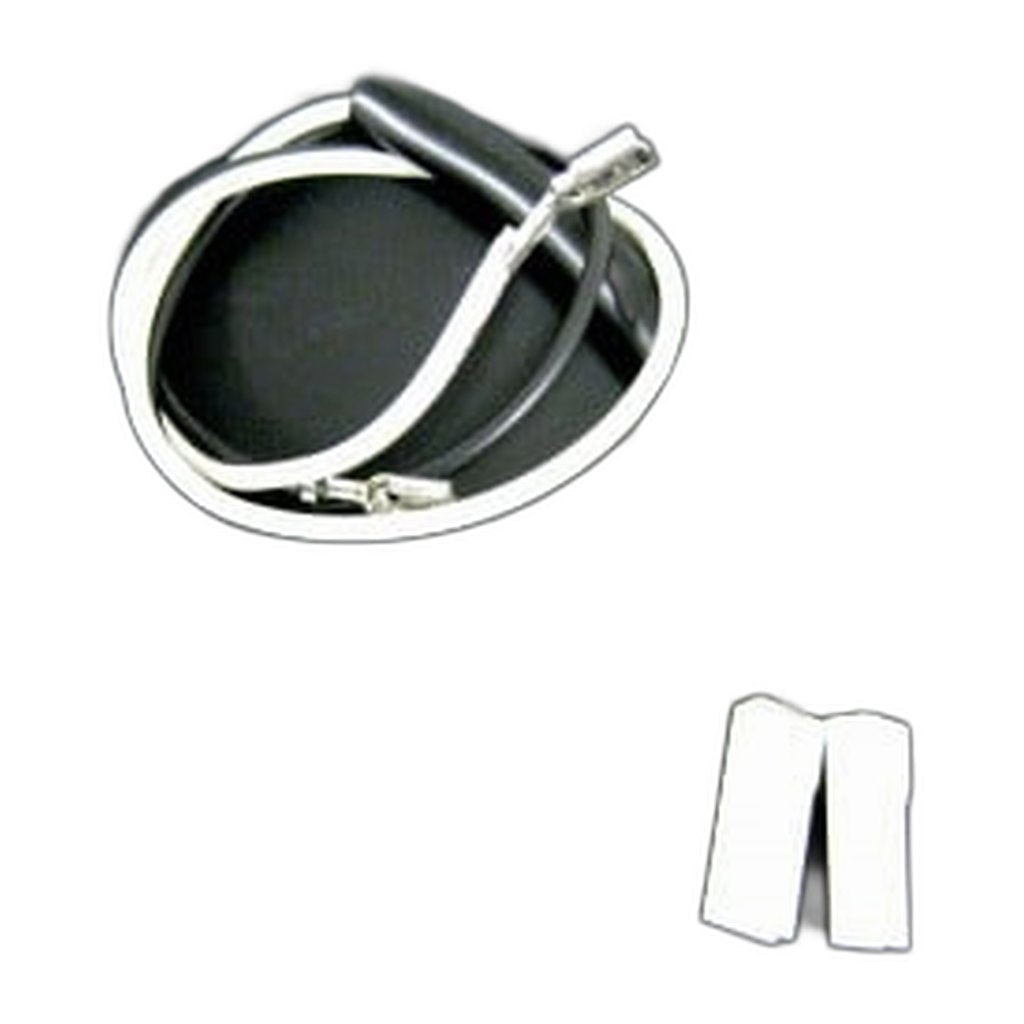

SEBO Motor Wiring Harness for AUTOMATIC X7 and X8

Motor cabling lives in the hottest, most vibration-prone corner of an upright. Part 52040ER is the factory cable set that feeds the 52194ER vacuum motor on the AUTOMATIC X7 Premium, AUTOMATIC X7 Pet and AUTOMATIC X8. SEBO calls it the motor cable set and draws it at position 110 on the AUTOMATIC X7 X8 breakdown.

Symptoms of a tired harness are electrical rather than mechanical: a machine that cuts out when the body is flexed, a motor that starts only sometimes, or spade terminals that have darkened with heat. Because the harness arrives pre-terminated, the repair comes down to matching connectors instead of splicing wire, which is the main argument for the factory set over anything improvised. Unplug the vacuum before opening it up, and photograph how the loom is routed before anything comes apart, since the routing matters as much as the connections do.

• Part number: 52040ER
• Serves: vacuum motor 52194ER
• Diagram position: 110, AUTOMATIC X7 X8 breakdown
• Fits: SEBO AUTOMATIC X7 Premium, AUTOMATIC X7 Pet and AUTOMATIC X8
• Related part numbers: 52054 cable guide, 5870ER power supply and computer controller board, 52059UL motor cover, 5450DG power supply cord

Work the loom back into its guide, 52054, before the motor cover goes down. A harness left hanging free will chafe against the fan housing and eventually short, which is how a straightforward cable job becomes a motor job. If the machine has been overheating, look at the motor support seal and the cover buffer while everything is open.

Searches for a SEBO X7 motor cable set, an AUTOMATIC X8 wiring harness, a motor loom for a SEBO upright, or part 52040ER all resolve to this item. Genuine SEBO part from an authorized dealer, ships in 2-5 business days.
