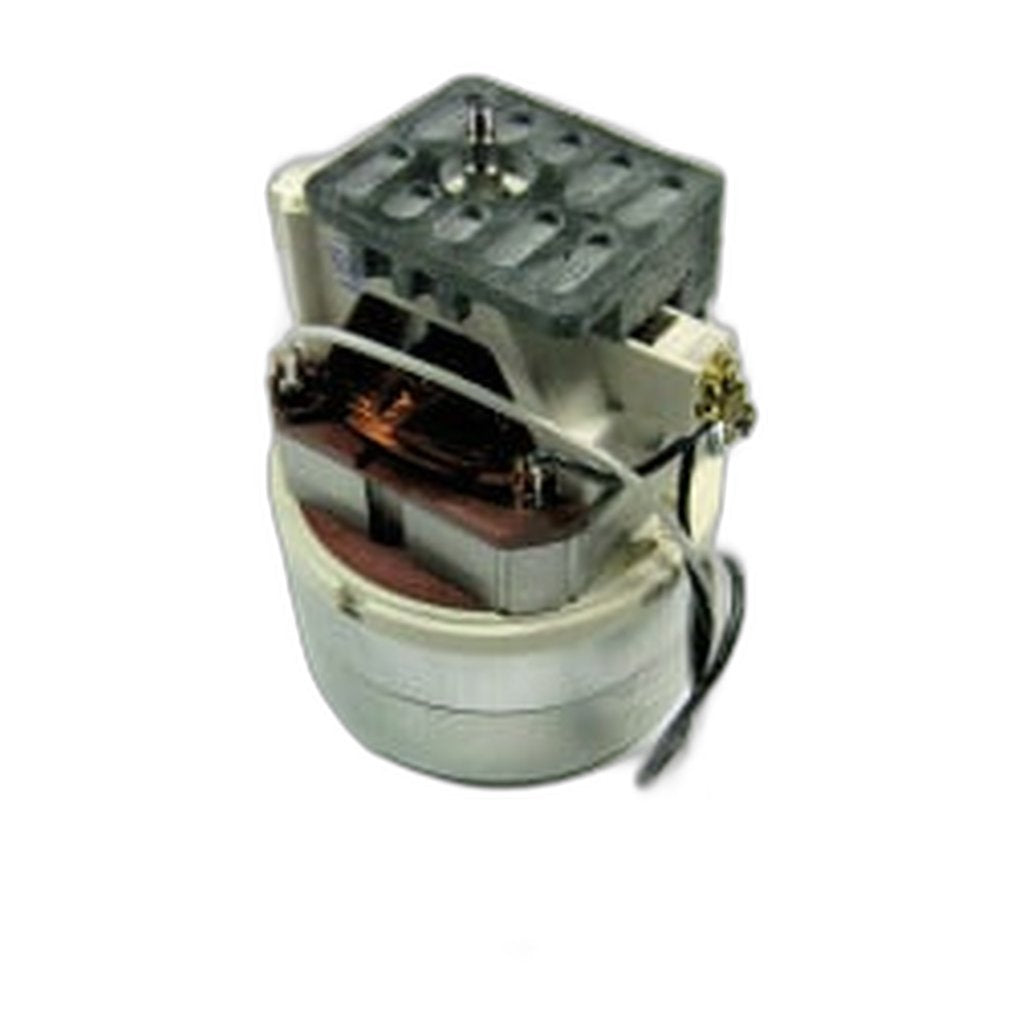

SEBO Vacuum Motor 120V / 1300W for AUTOMATIC X7 and X8 — with Pulley, Mount and Bumper Ring

Suction that fades over a single pass, a rising whine from the body of the machine, or a shutdown mid-clean with a hot smell behind it all point past the bag and filters to the suction motor itself. Part 52194ER is the 120V / 1300W replacement motor for the SEBO AUTOMATIC X7 Premium, AUTOMATIC X7 Pet and AUTOMATIC X8.

SEBO catalogues it as position 109 on the combined AUTOMATIC X7/X8 parts diagram, where it is listed as the 120V / 12 amp vacuum motor. It arrives built up, with the pulley, mount and bumper ring already fitted, so the job comes down to transferring the wiring lead by lead and reseating the assembly rather than assembling a motor pack from loose pieces. Before ordering one, rule out the simpler causes of the same symptoms: a full bag, a blocked pre-motor microfilter, a loaded exhaust microfilter 52039RV or an air channel cover 52115ER that has cracked and started leaking. A motor is the right answer once those have all been eliminated.

The parts immediately around it on the diagram are the ones you will disturb during the swap, and they are worth having to hand. Position 108 is the motor support seal 52013, position 110 the motor cable set 52040ER, position 111 the rubber mounting 5100 and position 112 the motor cover 52059UL, with buffer 52112 at position 123 and motor pulley 5462 at position 114. SEBO also lists a carbon brush set, 05117S, for these machines, which is what a motor that is merely worn rather than dead will often want first.

• Fits: SEBO AUTOMATIC X7 Premium, AUTOMATIC X7 Pet and AUTOMATIC X8
• Part number: 52194ER
• Rating: 120V, 1300W, listed on the diagram as 12 amps
• Supplied with: pulley, mount and bumper ring fitted
• Diagram position: 109
• Related part numbers: 05117S carbon brush set, 52013 support seal, 5100 rubber mounting, 52040ER motor cable set, 52059UL motor cover, 52112 buffer

Mains wiring is best handled by a qualified vacuum technician. Genuine SEBO motor supplied by an authorized dealer. Ships in 2–5 business days.
