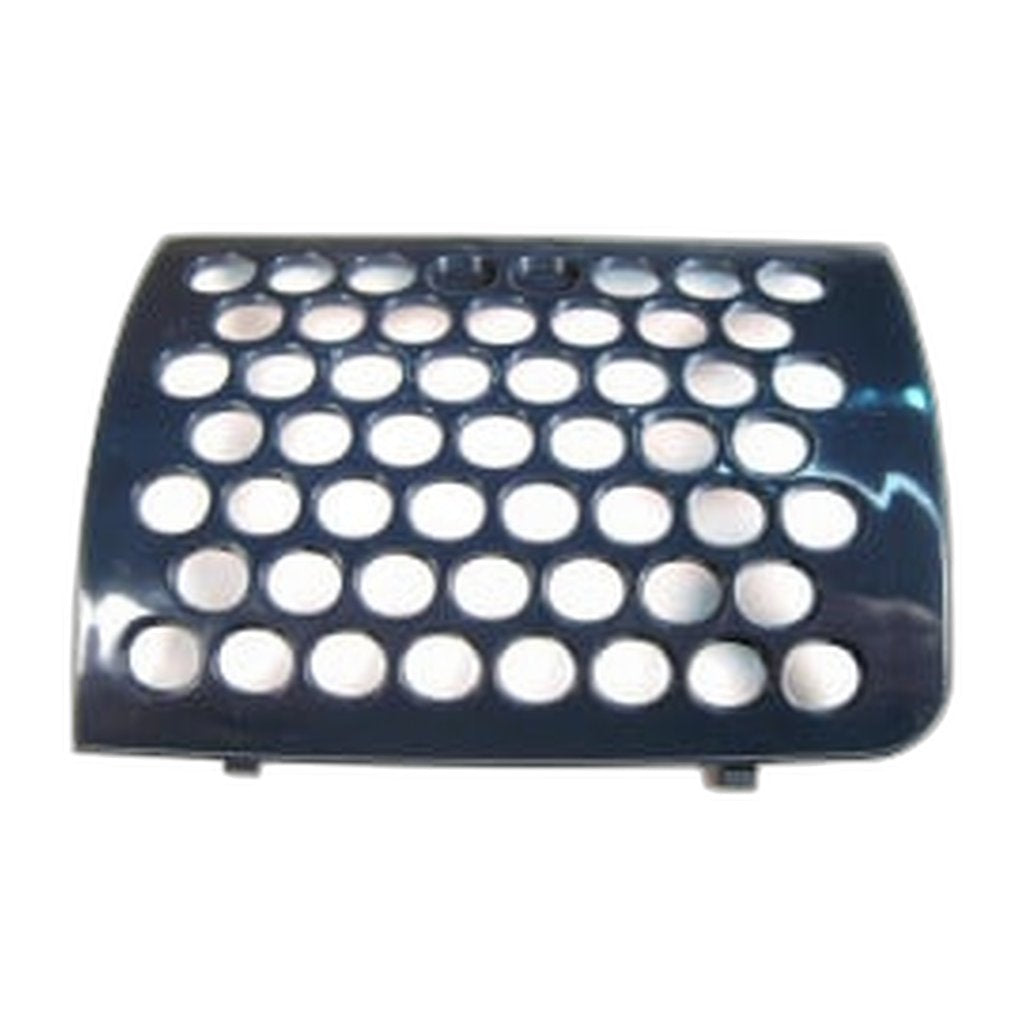

SEBO Exhaust Filter Cover for AUTOMATIC X4 and X5 — Dark Blue

Item 103 on the AUTOMATIC X4/X5 parts sheet is the exhaust filter cover, and 5711DB is the dark blue version of it, used on the AUTOMATIC X4 and the AUTOMATIC X5. It closes the bay at the machine's outlet and presses the filter medium down onto its seat.

The panel works as a clamp more than as a lid. Latched properly, everything leaving the fan is forced through the pleats; with a snapped tab or a cracked corner it stands a fraction proud, and air takes the easier route around the rim. The tell is a filter that stays oddly clean while a gray film builds on the wall behind the vacuum. Breakage nearly always happens while somebody is servicing the filter, and nearly always because the panel has been pried at with a screwdriver rather than unclipped by hand.

• Machines: SEBO AUTOMATIC X4, AUTOMATIC X5
• Finish: dark blue
• Diagram position: item 103, AUTOMATIC X4/X5 sheet
• Role: holds the exhaust filter square in its recess
• Supplied: panel alone, filter ordered separately
• Part number: 5711DB
• Next to it on the drawing: the exhaust filter catch at item 101, which in dark blue is 5712DB — both fall inside the complete power head cover drawn at item 100
• Matching dark blue trim: 5713DB brush roller release, 5707DB latch release cover

Typical searches land here under several names: SEBO exhaust filter cover, X5 rear filter panel, AUTOMATIC X4 exhaust cover in dark blue, or simply part 5711DB. Whichever wording brought you, check the finish on your machine first — the panel is tooled identically in four colors and only the code separates them. Ships in 2–5 business days.
