SEBO Right-Hand Brush Roll Bearing Block for ET-C and ELECTRONIC 370

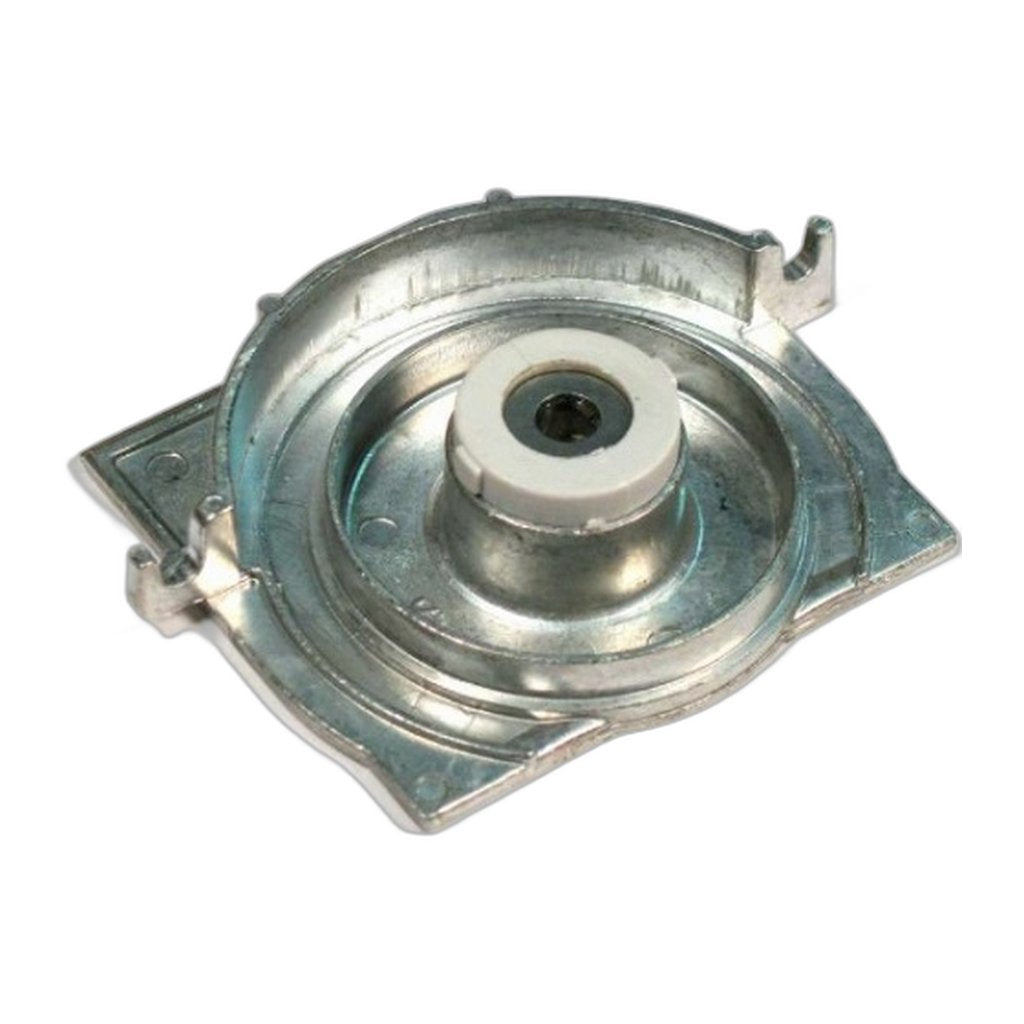

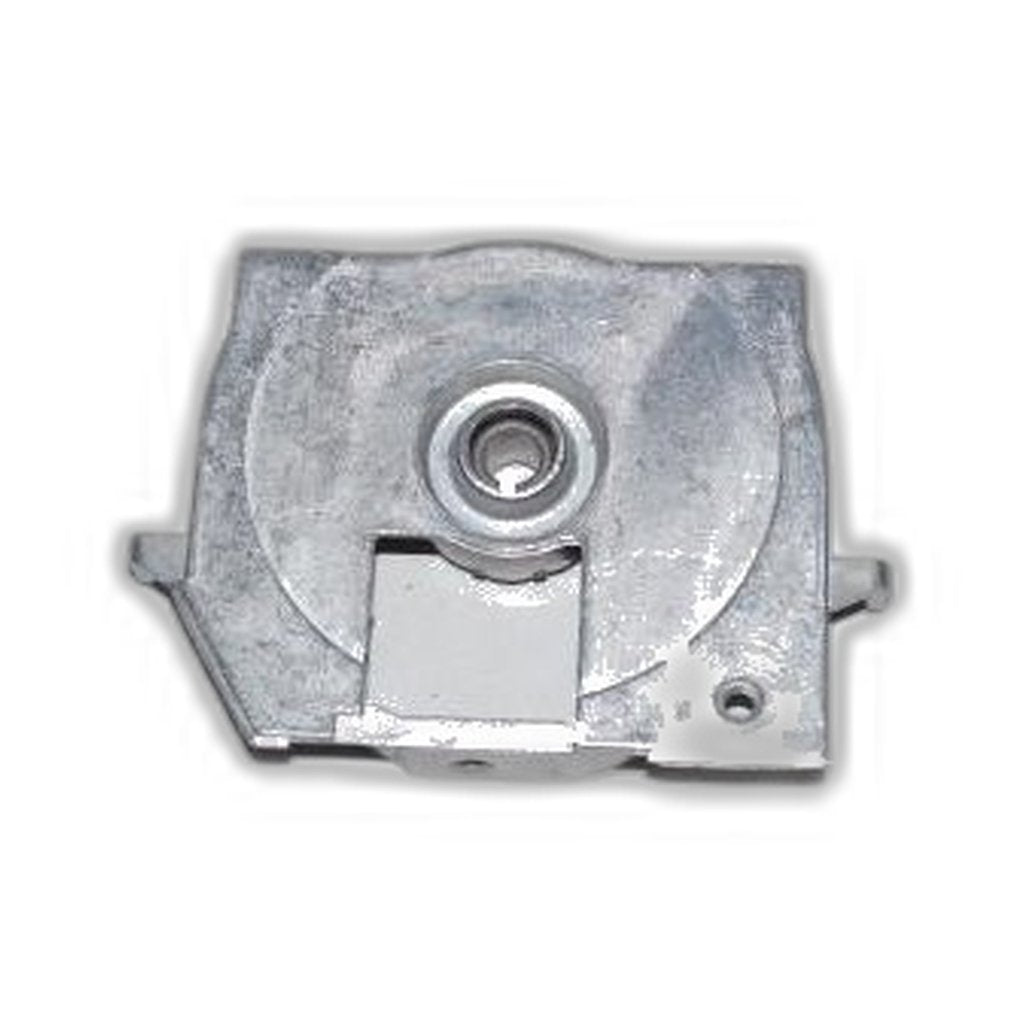

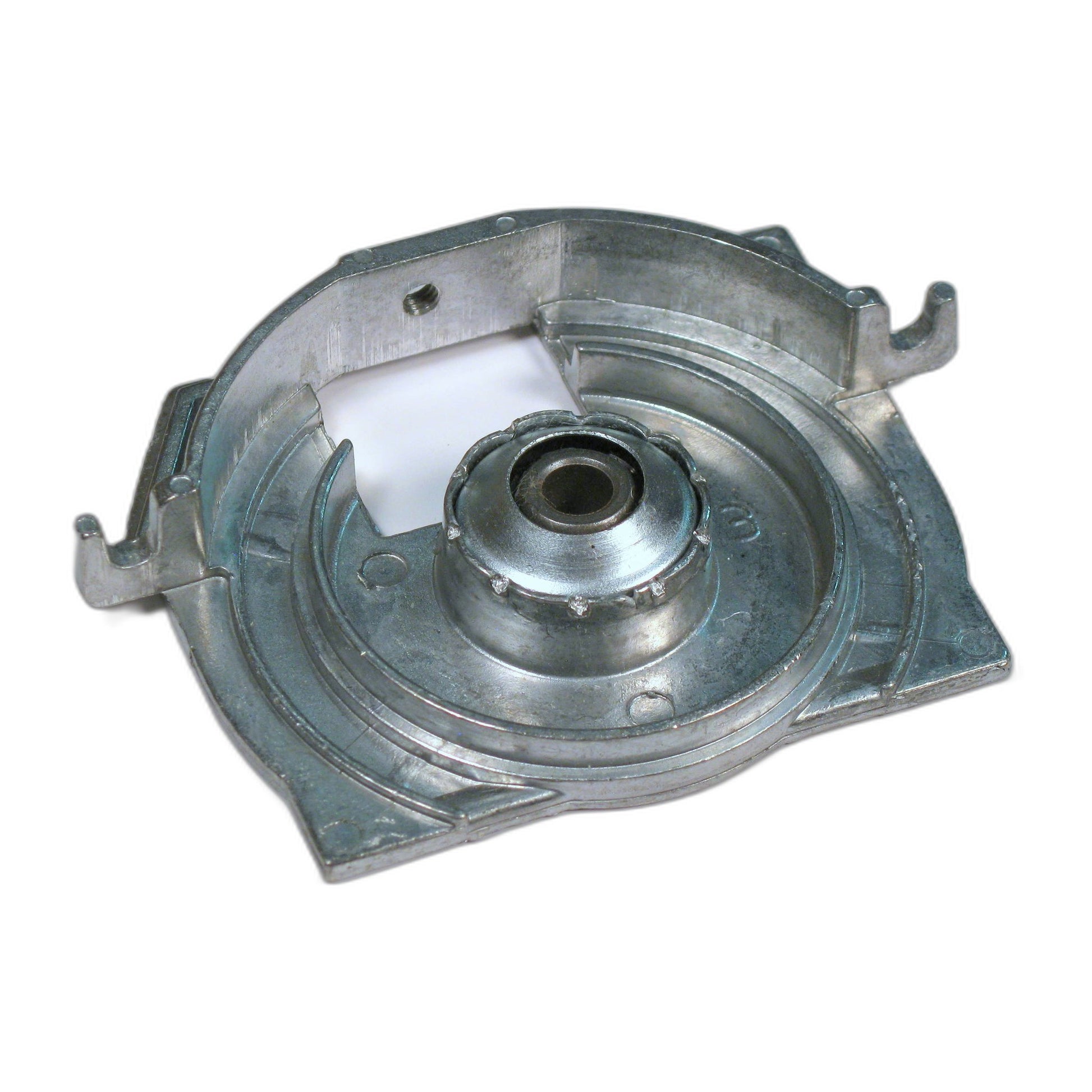

A rumbling, wobbling brush roll usually traces back to the moulded block carrying its shaft. Part 2047 is the right-hand bearing block used in the SEBO ET-C Power Heads and the SEBO ELECTRONIC 370, and its job is to hold one end of the roll at a fixed height so the shaft turns true.

Blocks take load continuously and eventually wear oval. What you notice is a grinding note under the head, a roll that sits at a slight angle, or a belt that keeps creeping off its pulley because the roll it drives is no longer running parallel to the shaft above it. None of those symptoms announce themselves as a bearing fault, which is why owners often replace two or three belts before looking at the block. The tell is that a fresh belt cures the noise for a fortnight and then the same note returns.

Renewing it at the same service as the belt is the sensible approach, and 2091 is the mirrored part at the opposite end of the same roll. If one block has worn, the other has done identical work and is worth inspecting while the roll is out. Check the roll shaft ends too: a block that has gone oval will have been letting the shaft move, and a shaft with a visible wear step will chew a new block just as quickly. Where the shaft ends are marked, brush roller 2030ER comes complete with its strip and puts a fresh pair of running surfaces in at the same time.

• Part number: 2047, SEBO brush roll bearing block, right hand
• Fits: SEBO ET-C Power Heads
• Fits: SEBO ELECTRONIC 370
• Handing: right-hand side only; the opposite end is part 2091
• Function: locates one end of the brush roll shaft at a fixed height
• Replace when: the roll rumbles, sits at an angle, or belts repeatedly walk off the pulley
• Drive train part numbers on the same machines: drive belt 2049, motor pulley 2025, brush roller pulley 2458, inner plastic bearing 2467, brush motor with pulley 2241UE
• Wear items: brush roller with strip 2030ER, brush roller strip 2046
• Genuine SEBO component, sold individually; ships in 2–5 business days
