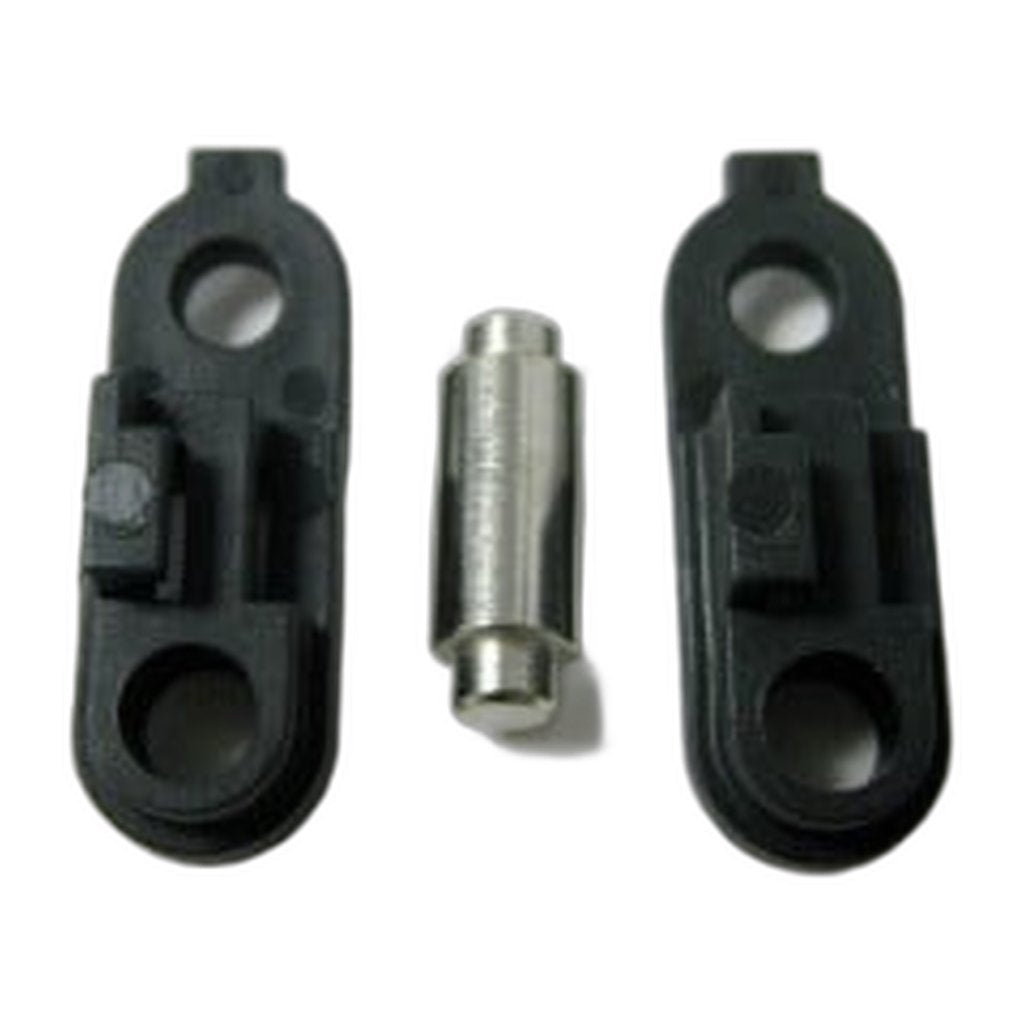

SEBO Bag Cover Hinges and Axles for AIRBELT D1 Turbo and D4 Premium

Two hinges and two axles come in this packet, which is exactly what a bag door needs in order to hang straight. Part 8052ER covers the pivot hardware on the AIRBELT D1 Turbo and the D4 Premium.

Consider how often that door moves. Once per bag change, through its full arc, with the weight of the cover hanging on two small plastic ears and the steel axles passing through them. Play arrives first, then a corner that sits low, then a door that catches on its way shut or hangs from one side alone. A door no longer closing square cannot press the cover seal down evenly, so the chamber begins leaking at whichever corner has dropped - which is how a pivot fault ends up being blamed on a filter. Renewing both sides in one go keeps the door running level across the opening instead of correcting one side and loading the other.

The repair itself is small. The door lifts off its axles, the worn ears go with them, and the new pair returns on the same pivot line. With the cover away it is worth wiping the seal face clean and studying the catch, since a door that has been hanging badly has been closing against its stop at an angle for some time.

• Order code: 8052ER
• Contents: two hinges, two axles
• Machines: AIRBELT D1 Turbo, AIRBELT D4 Premium
• Job: carries the bag chamber door on its pivot
• Axles alone: bag cover axle set 6750ER, item 24 on the AIRBELT D sheet
• Look at too: bag cover seal 8130, item 34
• Change them when: the door sags at a corner, binds as it shuts, or has broken away on one side

Do the pair in one sitting - a single new hinge only ends up pulling against its worn partner, and the door still sits out of true. Typical searches include SEBO bag cover hinge, AIRBELT D1 bag door pivot and D4 bag lid hinge set. Genuine SEBO hardware, authorized dealership. Orders move out within 2-5 business days.
