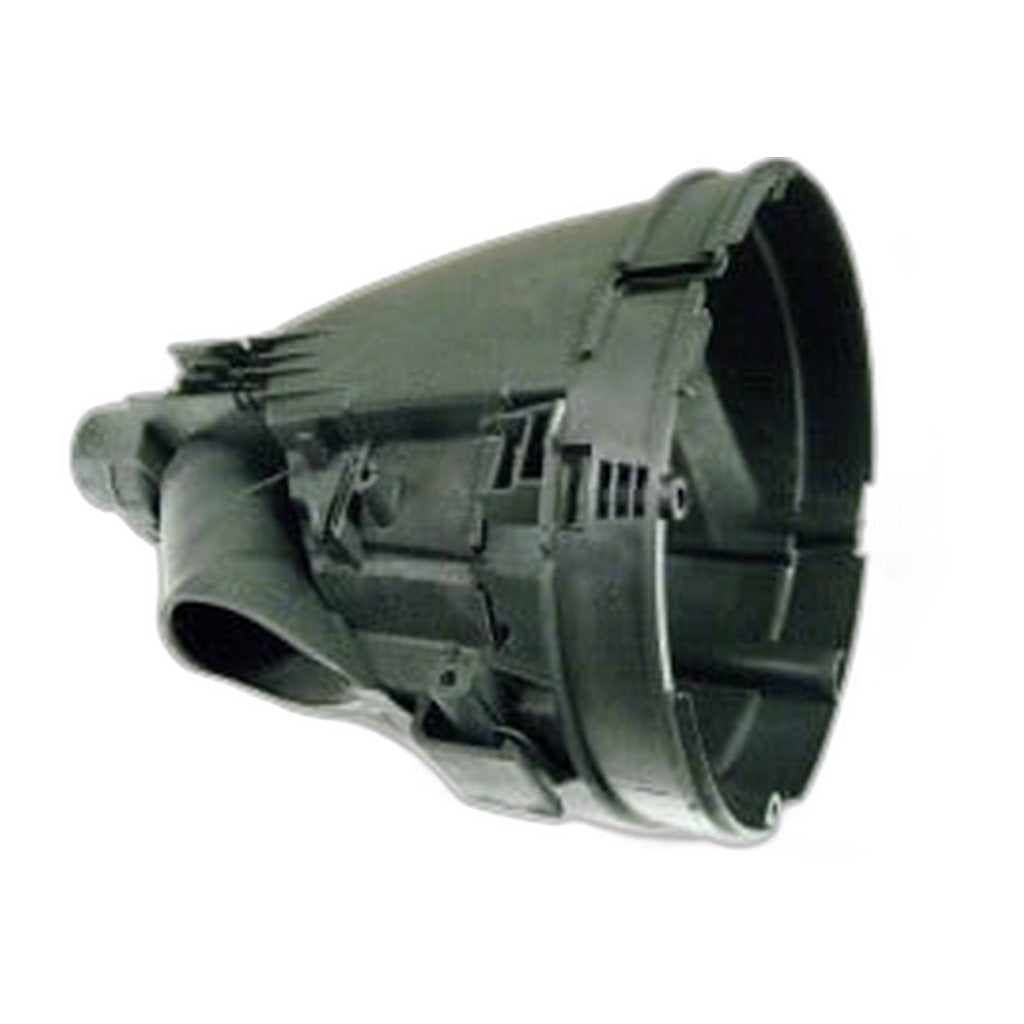

SEBO Air Duct for the DART Upright — Gray Black

7002GS is the gray black air duct made for the SEBO DART: the rigid internal channel that carries the airstream through the body of the upright on its way to the filtration.

Put it in the run and it explains itself. Dirt leaves the cleaning head, travels this channel, and lands in the AeraPure bag listed at position 22 of the DART parts sheet as 7029AM, which hangs in bag housing 7143ER. From there the air crosses pre-motor filter 7012AM at position 13, goes through the motor, and finally passes the exhaust filter at position 24, which clamp 7017GS holds down; SEBO's marine blue exhaust microfilter with textile for this machine is 7095AM08. Above-floor cleaning takes the same route through hose 7050SB at position 33, with retaining ring 7018OR at 38 and tube plug 7076GS at 27.

Rigid ducting does not wear out gradually the way a belt or a brush strip does. It fails at a point: a seam splits after the machine has been dropped or wedged into a doorframe, or something solid lodges in the bend and stays there. Both faults produce the same odd report — the motor sounds exactly as it always has, the bag is not full, the filters are clean, and the nozzle has stopped lifting anything. A split lets the motor draw easy air from inside the machine rather than hard air from the carpet; a blockage simply throttles it. Either way the pull that reaches the floor is gone.

• Part number: 7002GS
• Fitted to: SEBO DART
• Finish: gray black
• Function: internal air channel carrying dirt from the cleaning path to the bag chamber
• Same airway: 7050SB hose, 7018OR retaining ring, 7076GS tube plug, 7143ER bag housing
• Consumables downstream: 7029AM filter bags, 7012AM pre-motor filter
• Replace when: the channel is split, distorted, or permanently obstructed

A SEBO DART air duct, a gray black airway moulding and a DART suction loss repair are all descriptions of this component. Factory SEBO moulding, authorized dealer stock, sent out in 2–5 business days.
