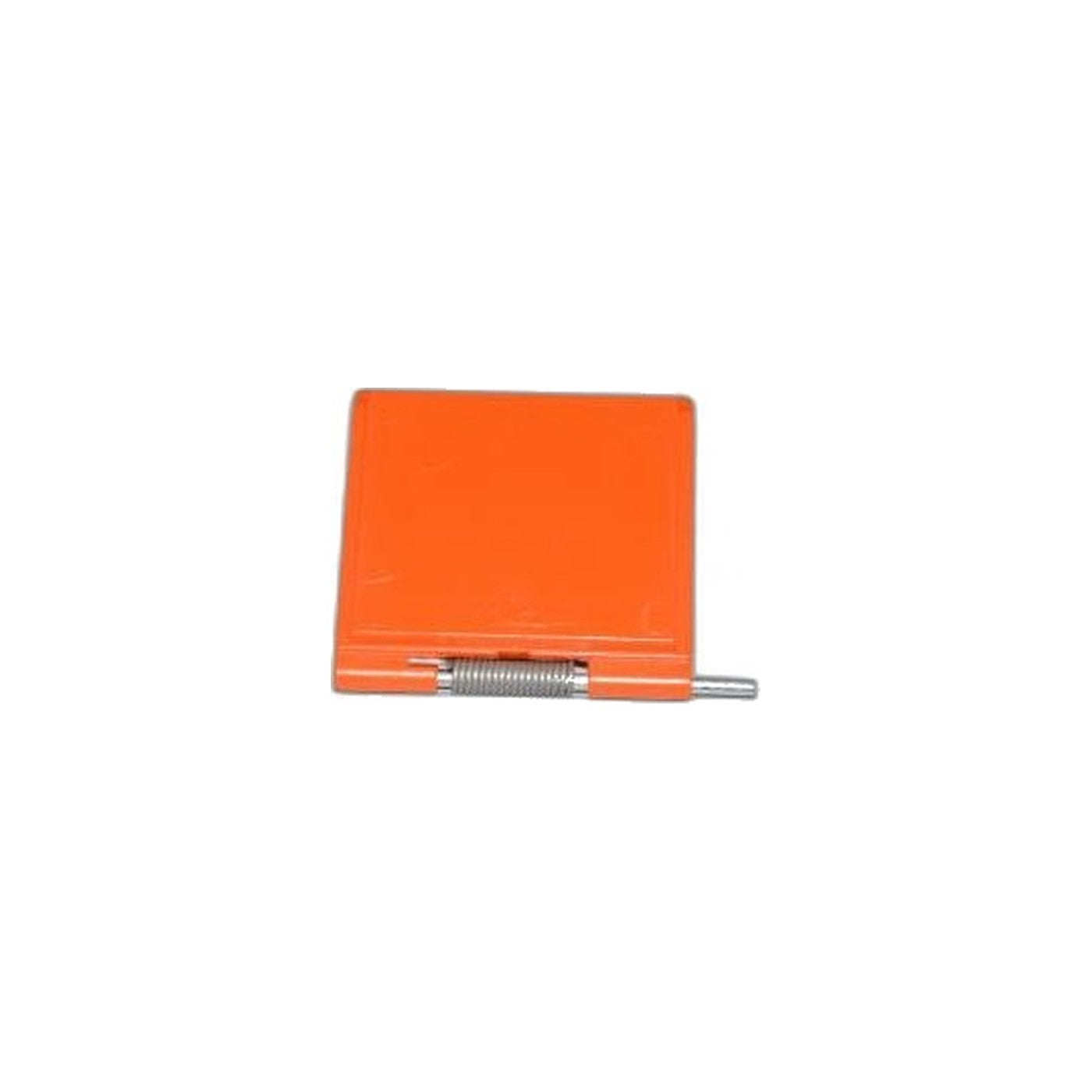

SEBO Access Door with Axle and Spring for ET-1 and ET-2 Power Heads — Orange

ET-1 and ET-2 power heads pass this hinged door on to every machine built around them, which is why one orange component covers so much of the SEBO range. Part 2909VO ships complete with its axle and spring, and SEBO puts it at position 108 on the ET-1/ET-2, DART and FELIX parts sheets alike.

The door is what gets opened for belt and brush access, so its hinge sees more cycles than almost anything else on the head. As the spring slackens or the axle wears its bore oval, the door stops sitting flush: it hangs open a few millimetres, drags on carpet as the head is pulled back, rattles over hard floors, and eventually breaks at the pivot where the plastic has been working. Fitting the assembled part restores the pivot and the closing tension in one go, with no hardware to transfer across from a broken door and nothing to line up by hand.

Full fitment runs to the SEBO ET-1 and ET-2 power heads in both the with-switch and without-switch versions, the FELIX Premium and FELIX 2 Premium, the DART, the AIRBELT D4 PREMIUM, the AIRBELT E3 Premium, the AIRBELT K3 PREMIUM and the C3.1. Behind the same door sit the parts most often replaced with it: toothed belt 2923, axle 2928, spring 2929 and orange foot pedal assembly 2937OR. Roller sizes split by head — the 12 inch 5010AM covers the ET-1 heads, FELIX Premium, DART, AIRBELT D4 PREMIUM, AIRBELT E3 Premium, AIRBELT K3 PREMIUM and C3.1, while the ET-2 heads and the FELIX 2 Premium take the 15 inch 2838AM. Searches for a SEBO access door with its axle and spring fitted, an ET-1 belt door or a FELIX brush access door land here.

• SEBO part 2909VO — hinged access door, axle and spring included
• Fits: SEBO ET-1 and ET-2 power heads (with or without switch), FELIX Premium, FELIX 2 Premium, DART, AIRBELT D4 PREMIUM, AIRBELT E3 Premium, AIRBELT K3 PREMIUM and C3.1
• Color: orange
• Parts-diagram position: 108 on the ET-1/ET-2, DART and FELIX sheets
• Typical symptom: a door that will not latch flush, drags on carpet, or has snapped at the hinge
• Related part numbers: 2923 belt, 2928 axle, 2929 spring, 2937OR foot pedal with axle and spring
• Genuine SEBO; ships in 2–5 business days
